Mounting Selection Guide
Use this quick path to pick the right cylinder accessory family for your application.

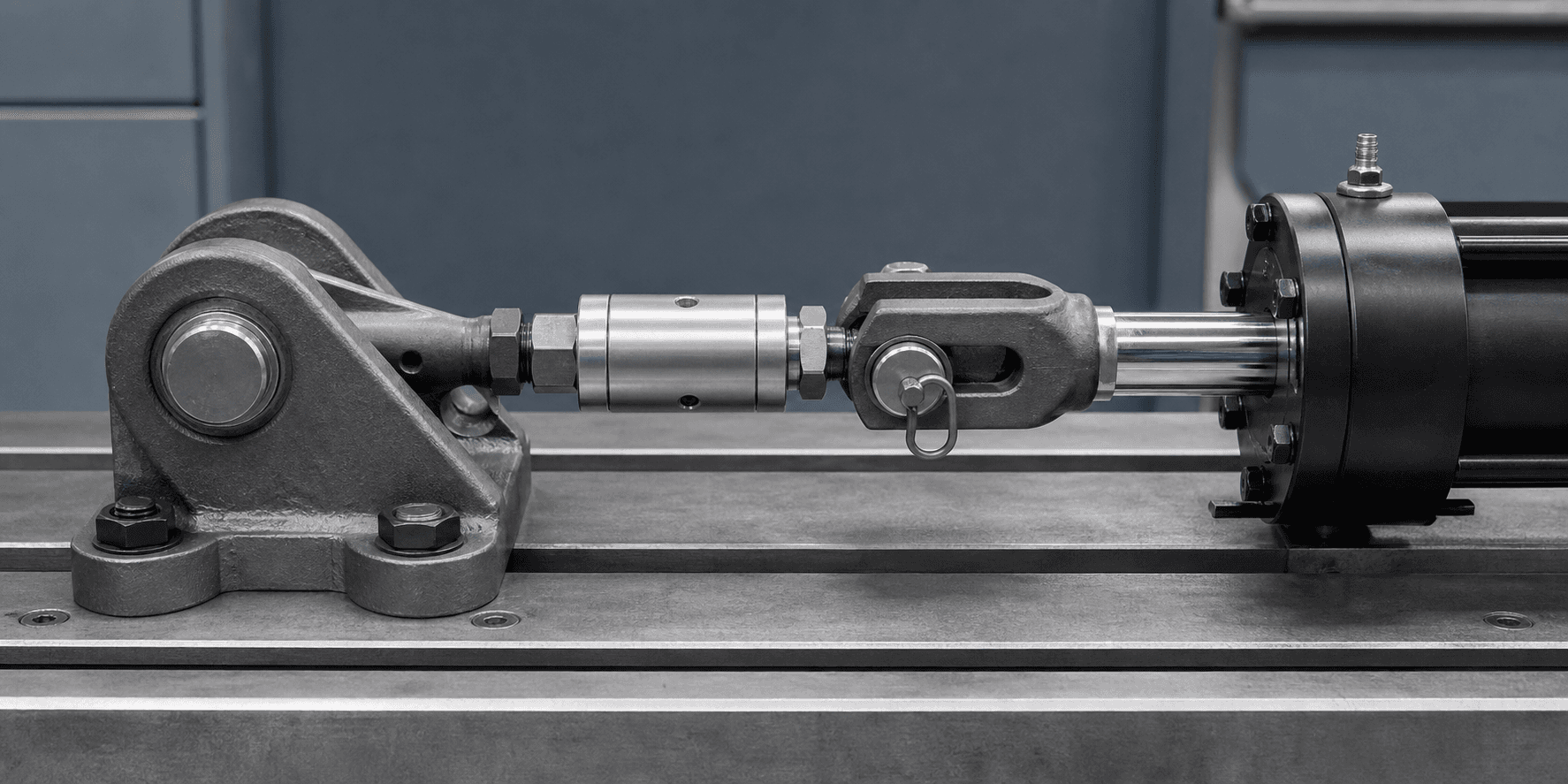

Inline Force
Rod eye, rod clevis, and alignment coupler options.

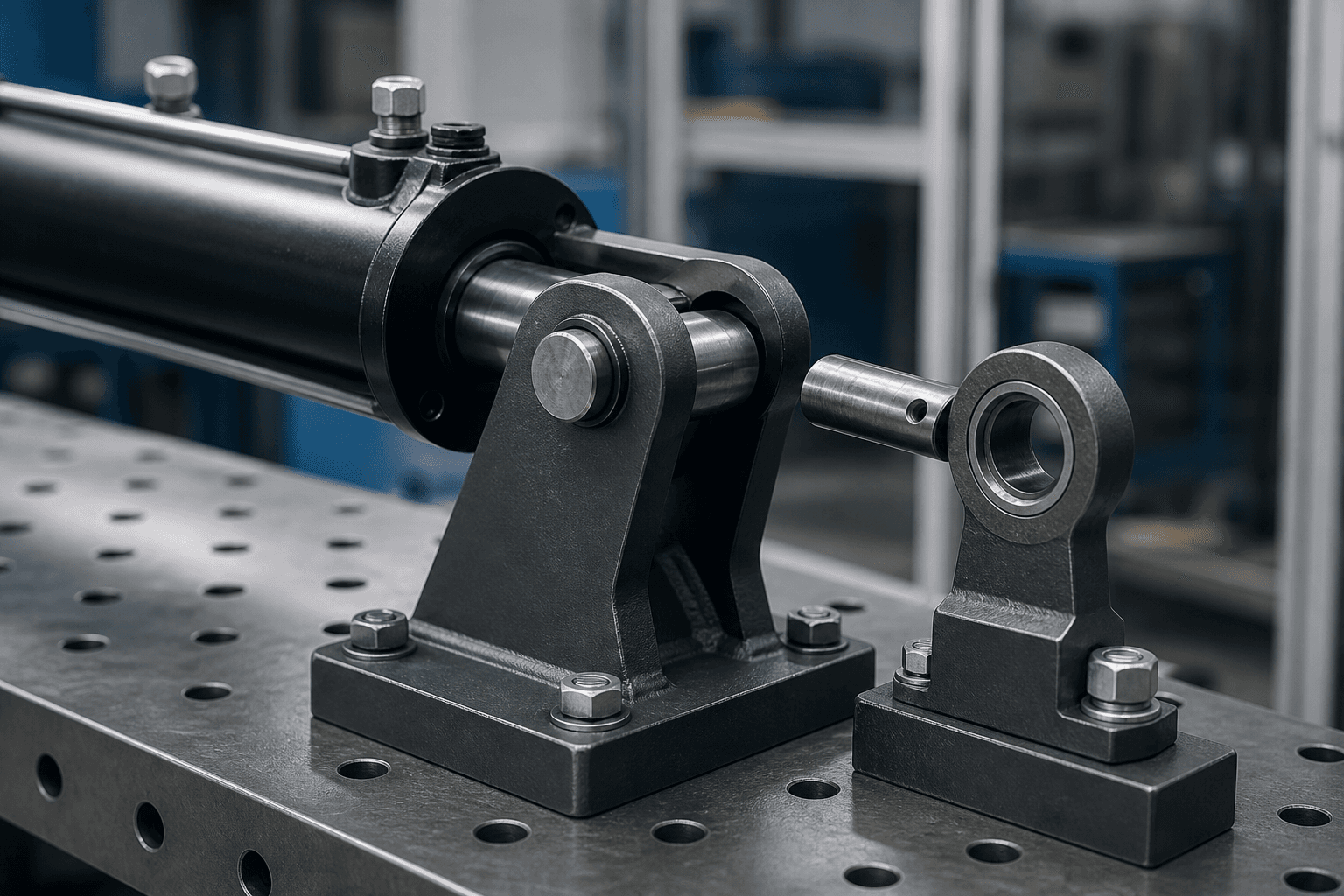

Pivotted Motion
Clevis brackets, eye brackets, and pivot pins.
Fixed End Mounting
Rectangular flanges and detachable mounts.
Selection Checklist
- Confirm pin size, thread size, and bore compatibility.
- Identify load direction and expected side-load risk.
- Decide between standard mount vs spherical/self-aligning style.
- Verify environment: washdown, corrosion, contamination, heat.
- Validate installation envelope and maintenance access.
